Presentation

PVC-U K62 Fittings main advantages

  • No corrosion, no scale
  • Certfied quality products label NF-P (dimension and mechanical characteristics) Produits certifiés NF-P
  • Low load losses
  • Approved for potable water services
  • Installation time under control



Applications

  • Cold water services
  • Swimming pool
  • Irrigation
  • Industry

News

Threaded fittings

GIRPI have a wide range of threaded fittings for high torque to answer to all markets needs: for the risers, connecting to the valves, to the regulations fittings...More than 40 references are available.

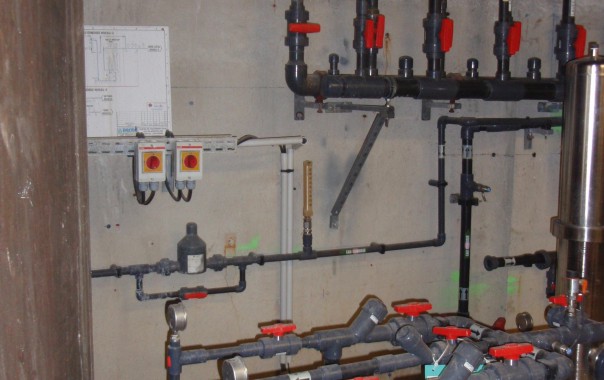

Building site pictures

Réseau eau froide réalisé en PVC-U K62

Our products

Read all about GIRPI products

Documentations

Installation rules

A professional solution facilitates installation even on occupied sites. Lightweight pipes, easy to handle, simple set of tools, no fire permit required, no noisy operations.

  • Cutting

    Make a clean, square cut using an dapted pipe cutter.

  • Chamfering

    Chamfer using an adapted chamfering tool.

  • Checking

    Check: the pipes and fittings must be clean and dry, with no scratches or impact marks.

  • Measure and mark

    the socket depth of the fitting using the gauge.

  • Cleaning

    Clean the parts to be welded, first Female then Male, using CLEANER+. Use a clean, lint-free piece of cloth. Leave to dry using a soft, lint-free piece of cloth.

  • Shake the pot 5 seconds

    to mix the polymer when doing the first welds of the day. The more the polymer is shaken, the more fluid it will be. If you find that it is too fluid, leave it to settle for a few minutes.

  • Apply the welding polymer

    in a thin, uniform coat. To obtain better adherence, crry out 4 to 8 rotations (depending on the diameter) on the Female parts first, and then the Male parts.

  • Immediately push together

    the Male and Female parts up to the mark, push straight without twisting, and hold for 5 seconds.
