Presentation

HTA®-E MAIN ADVANTAGES

  • A wide range with specific connectors, from diameter 40 to diameter 200
  • Corrosion free
  • Low pipe surface temperature (limits burning risks)
  • Fire classification: Bs1d0 (Euroclasses), this is the best rating wich a synthetic material can achieve
  • Limited condensation and heta loss
  • Installation time under control (lightweight pipes, simple tools, no fire permit required)

Applications

HTA®-E in CPVC is especially suitable for centralized kitchens, condensate drainage, food industries…

  • Centralized kitchens in retirement homes, hospitals, hotels, schools, restaurant …
  • Condensate drainage (boilers)
  • Food industries
  • Shipyards (black and grey water system)

News

Diameter 200

HTA-E is now available in diameter 200. This new diameter id dedicated to the drainage of hot effluents for the centralized kitchens (more than 1 000 meals a day).

Building site pictures

HTA-E networks
HTA-E
Installation

Our products

Read all about GIRPI products

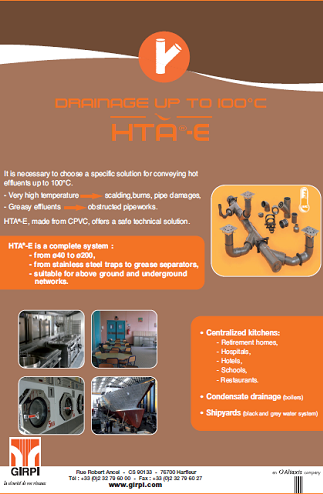

Documentations

Installation rules

A professional solution facilitates installation even on occupied sites. Lightweight pipes, easy to handle, simple set tools no fire permit requires, no noisy operations.

  • CUTTING

    Cut the pipe square with a roller pipe-cutter for plastic pipes.

  • CHAMFERING

    The pipe must be trimmed inside and a chamfer must be made on the outside with an adapted tool.

  • CHECKING

    Both pipes and fittings must be clean and dry.

  • CLEANING

    Clean and degreases surfaces from the fittings and the pipes with cleaner+, use a clean cloth.

  • WELDING POLYMER APPLICATION

    Coat the socket first, then the sigot with the welding polymer using the applicator. Always close the pot after use.

  • PUSH STRAIGHT

    Push together immediatly without twisting.

Certifications

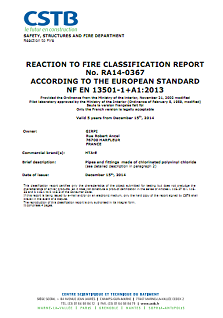

  • REACTION TO FIRE CLASSIFICATION

    Download
